Add to CompareShare Air Filter Combination Aluminum Alloy FRC-1-D-MAXI 1" Drain Type Air Control Air Filter Regulator

China Add to CompareShare Air Filter Combination Aluminum Alloy FRC-1-D-MAXI 1" Drain Type Air Control Air Filter Regulator supplier

Large Image :  Add to CompareShare Air Filter Combination Aluminum Alloy FRC-1-D-MAXI 1" Drain Type Air Control Air Filter Regulator

Product Details:

Place of Origin: CHINA
Brand Name: FLY
Certification: CE
Model Number: FRC-1-D-MAXI

Payment & Shipping Terms:

Minimum Order Quantity: 1-100 piece
Price: Email enquiry
Packaging Details: carton, 0.8kg/pcs
Delivery Time: 1-3 work days after payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Code: FRC-1-D-MAXI Size: G1/8 G1/4
Brand: FLY Inner Size: 11.5mm

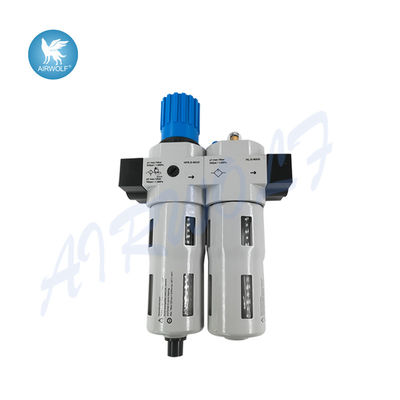

Air Filter Combination Aluminum Alloy FRC-1-D-MAXI 1" Drain Type Air Control Air Filter Regulator



Product Description

Product feature



1. Filter, regulator and lubricator functions in a single unit.
2. High flow rate and highly efficient removal of contaminants.
3. Good regulating characteristics with minimal pressure hysteresis.
4. Setting values are secured by locking the rotary knob.

5. Lockable rotary knob (via accessories).

6. Two pressure regulation ranges: 0.5~7bar and 0.5~12bar.

7. Two pressure gauge connections for different fitting options.

8. Choice offilter cartridges: 5µm or 40µm.

9. With manual, semi-automatic or fully automatic condensate drain.

General technical data
Size Micro Mini Midi Maxi
Pneumatic connection 1/8" 1/8" 1/4" 3/8" 3/8" 1/2" 3/4" 3/4" 1"
Operating medium Compressed air
Design Filter regulator
Proportional standard mist lubricator
Type of mounting Via accessories
In-line installation
Assembly position Vertical ±5°
Grade of filtration [µm] 5 5 or 40
Max. hysteresis [bar] 0.3 0.2 0.4
Pressure regulation range [bar] 0.5~7 0.5~7
0.5~12
Pressure
indication
  Via pressure gauge
Port connection M5 G1/8 G1/4 G1/4
Max. condensate volume [cm3] 3 22 43 80
Input pressure [bar]
Condensate drain manual 0~10 0~16
semiautomatic 1~10 -
fully automatic - 2~12




Weight

Size Micro Mini Midi Maxi
Connecting
thread

Connecting
plate
Connection
G1/2 G3/4
Connection
G1
With pressure gauge
LFR-… 104 124 460 920 1,370 1,470
LFR-…-DI - - - - 1670 1670
LFRS-.. - - 560 1160 1470 1570
LFRS-...-DI - - - - 1950 1950

Without pressure gauge
LFR-… 94 114- 410 830 1300 1400
LFR-…-DI - - - - 1600 1600
LFRS-.. - - 510 1070 1400 1500
LFRS-...-DI - - - - 1880 1880



Size

Type B1 B2 B3 B4 B6 D1 D2

D3 D4 D5

D6

D9

Mini
LFR/LFRS-1/8-D-MINI (A) 64 20 76 ~52 40 G1/8 31 M36*1.5 M4 41 5.6 38
LFR/LFRS-1/4-D-MINI (A) G1/4
LFR/LFRS-3/8-D-MINI (A) 70 G3/8

Midi
LFR/LFRS-1/4-D-MIDI (A) ~85 27.5 ~94.5 ~70 55 G1/4 50 M52*1.5 M5 49 5.6 52
LFR/LFRS-3/8-D-MIDI (A) G3/8
LFR/LFRS-1/2-D-MIDI (A) G1/2
LFR/LFRS-3/4-D-MIDI (A) G3/4

Maxi
LFR/LFRS-1/2-D-MAXI (A) 96 33 106 80 66 G1/2 31 M36*1.5 M5 49 5.6 65
LFR/LFRS-1/2-D-DI-MAXI (A) 105 49 M52*1.5
LFR/LFRS-3/4-D-MAXI (A) 106 G3/4 31 M36*1.5
LFR/LFRS-3/4-D-DI-MAXI (A) 105 49 M52*1.5
LFR/LFRS-1-D-MAXI (A) 116 106 91 G1 31 M36*1.5
LFR/LFRS-1-D-DI-MAXI (A) 105 49 M52*1.5





Weight

Size Micro Mini Midi Maxi
Connecting
thread

Connecting
plate
Connection
G1/2 G3/4
Connection
G1
With pressure gauge
LFR-… 104 124 460 920 1,370 1,470
LFR-…-DI - - - - 1670 1670
LFRS-.. - - 560 1160 1470 1570
LFRS-...-DI - - - - 1950 1950

Without pressure gauge
LFR-… 94 114- 410 830 1300 1400
LFR-…-DI - - - - 1600 1600
LFRS-.. - - 510 1070 1400 1500
LFRS-...-DI - - - - 1880 1880



Size

Type B1 B2 B3 B4 B6 D1 D2

D3 D4 D5

D6

D9

Mini
LFR/LFRS-1/8-D-MINI (A) 64 20 76 ~52 40 G1/8 31 M36*1.5 M4 41 5.6 38
LFR/LFRS-1/4-D-MINI (A) G1/4
LFR/LFRS-3/8-D-MINI (A) 70 G3/8

Midi
LFR/LFRS-1/4-D-MIDI (A) ~85 27.5 ~94.5 ~70 55 G1/4 50 M52*1.5 M5 49 5.6 52
LFR/LFRS-3/8-D-MIDI (A) G3/8
LFR/LFRS-1/2-D-MIDI (A) G1/2
LFR/LFRS-3/4-D-MIDI (A) G3/4

Maxi
LFR/LFRS-1/2-D-MAXI (A) 96 33 106 80 66 G1/2 31 M36*1.5 M5 49 5.6 65
LFR/LFRS-1/2-D-DI-MAXI (A) 105 49 M52*1.5
LFR/LFRS-3/4-D-MAXI (A) 106 G3/4 31 M36*1.5
LFR/LFRS-3/4-D-DI-MAXI (A) 105 49 M52*1.5
LFR/LFRS-1-D-MAXI (A) 116 106 91 G1 31 M36*1.5
LFR/LFRS-1-D-DI-MAXI (A) 105 49 M52*1.5



NingboFly Automation was founded in 2006. We have many years experience in producing pneumatic components. Pneumatic components includes pneumatic fittings, pulse valves, water valves, induction coil, solenoid valves, manual valves, air control valves, angle seat valve, air preparation units, cylinders, air gun, air brush, machinery parts, PU/PE pneumatic & hydraulic tubes and pneumatic accessories.
Our factory is in the national tourist resort---Xikou Town, Ningbo, China, adjoins the world-class deep water harbor------Beilun port, 2 hours driving to Shanghai, only 20kms away from Ningbo Lishe International Airport, whereby it enjoys great traffic convenience.
Our products quality is strictly controlled according to ISO quality standard. The perfect producing and testing equipments, advanced quality management system, professional manufacture and sales team guaranteed our forceful before-sale and after-sale service.
We keep the policy “Favorable price, on-time delivery, steady quality, ceaseless development heart-to-heart service and Win-win mode”.


Packing and shipping

1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
