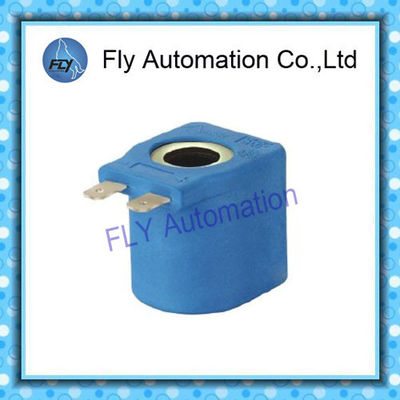

Blue Automotive Valve Electromagnetic Coil Insert Type Φ 13.2 × 37

Large Image : Blue Automotive Valve Electromagnetic Coil Insert Type Φ 13.2 × 37

Product Details:

Place of Origin:	China
Brand Name:	NIJIA
Certification:	ISO9001CE
Model Number:	NJT201

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time:	1-10 working days after received payment
Payment Terms:	T/T,western Union,Paypal,Credit card
Supply Ability:	100,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Automotive Valve Coil NJT201	Inner Hole:	13.2mm
Standard Power Consumption:	17W 18W 20W	Coil Insulation:	Class H
Connection Type:	Insert 6.3 * 0.8mm	Material:	Polyamide 66
Standard Operating Voltages::	12-24 VDC Other Voltages On Request.	Operating Temperature Range::	-40°C ÷ +120°C
High Light:	solenoidal coil , solinoid coil

Lovato Pressure Reducer LPG CNG LNG Φ13.2×37 Automotive Valve electromagnetic Coil insert type

The Automotive valve coil NJT201 suitable for Lovato Pressure Reducer. It can be supplied with different

power consumptions according to specific requirements.

The NJT201 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG CNGand

LNG system.

The NJT201 coils are designed thermoplastic composite material or flame retardant temperature resistant resin.

Other special voltage and power could be customized

Specifications:

1. Normal voltage:24VDC 12VDC

2. Normal power: 17W 18W 20W (other voltage and power can be customized)

3. Color:Bule,(can be customized)

4. Inner Hole:Φ13.2,High37mm

5. Protect class:IP65

6. Resistance valve: 1Ω,2Ω,3Ω,5Ω,6Ω,12Ω,others can be customized

7. Insulation class: H

8. Connection Type:6.3*0.8mm

9. Used to Lovato pressure reducer
10. Heavy duty long service life

Drawings:

Blue Automotive Valve Electromagnetic Coil Insert Type Φ 13.2 × 37

Applications

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Coil other parameter:

Insulation temperature class	A	E	B	F	H
Maximum allowable temperature/degree	105	120	130	155	180
Permissible temperature rise(K)	60	75	80	105	125
Performance reference temperature/degree	80	95	100	120	145
Thermal margin	5	5	10	10	15
Maximum ambient temperature/degree	40	40	40	40	40
