20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm

Certification
Good quality Pneumatic Solenoid Coil for sales
Good quality Pneumatic Solenoid Coil for sales
We have been doing business with Nijia Technology since 2005, we are increasing our quantity every year, both of us are growing fast.

—— Dave Crombie

I have tested all the items which are found satisfactory, I think there could be big market in Middle East, Thanks!

—— Mohammad Akmal

Your solenoid coils are very good, we decide to increase the orders in future.

—— G. Schmitt

I'm Online Chat Now

20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm

China 20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm supplier
20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm supplier 20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm supplier 20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm supplier

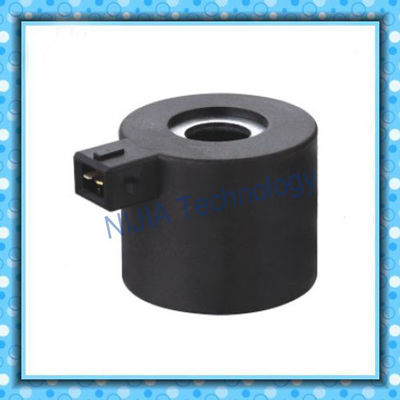

Large Image :  20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm

Product Details:

Place of Origin: China
Brand Name: NIJIA
Certification: ISO9001CE
Model Number: NJT211

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: 1-10 working days after received payment
Payment Terms: T/T,western Union,Paypal,Credit card
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Color: Black,or Customized Inner Hole: Φ 16.1 × 41.7mm
Standard Power Consumption: 20W Coil Insulation: H
Connection Type: DEUTCH Material: Thermoplastic
Standard Operating Voltages:: 12-24 VDC Other Voltages On Request. Operating Temperature Range:: -40°C ÷ +120°C



DC12V IP65 100%ED 20W Car Pressure Reducing Valve Coil Landi type Relieve Valve Coil Φ 16.1 × 41.7mm



The NJT211 coils are designed thermoplastic composite material or flame retardant temperature resistant

resin,widely used in compression release valve etc.



The NJT211 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG LNG and CNG system.



Landi type Relieve Valve Coil NJT211 suitable for automotive valve system.

Φ 16.1 × 41.7mm DC12V 20W ,Other special voltage and power could be customized



It can be supplied with different power consumptions  according to specific requirements.





Specifications:



item relieve valve coil
product code NJT211
specification DEUTCH
applied of voltage DC12V
resistant breakdown voltage ≥1800V 1MA/min
voltage range ±10%
insulation class H grade
protection grade IP65
ED 100%
temperature resistant range B. H
coated materials Thermoplastic composite material or flame retardant temperature resistant resin
advantages high temperature resistant, excellent moistureproof property
applications widely used in compression release valve etc.



Drawings:

20W Waterproof Automotive Solenoid Landi Type Relieve Valve Coil Φ 16.1 × 41.7mm





Competitive Advantage:



High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

 system, pressure reducer,motorcycle device etc.





Coil other parameter:



Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40





Attention:



1, Before you endorse the parcel , please do open the package , and check out whether the items are damaged during the shipping process . If so , please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this

2, Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions, please feel free to contact us.
