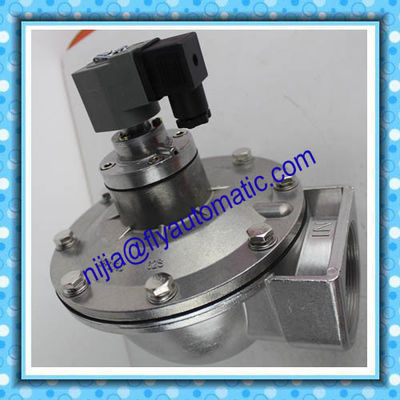

Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves

China Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves supplier
Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves supplier Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves supplier Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves supplier

Large Image :  Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves

Product Details:

Place of Origin: China
Brand Name: Goyen or OEM
Certification: CE ISO9001
Model Number: CA62T

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: USD65 -96 Per piece
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 5
Payment Terms: Western Union, T/T, L/C,Paypal,Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description
Body: Aluminum Core And Plugnut: Stainless Steel
Core Spring: Stainless Steel Working Pressure: 0.35-0.85Mpa
Sealing & Disc: CR (chloroprene) Diaphragm: NBR(nitrile/buna-n) Or Viton
Diaphragm Seat: PA-6 (standard) Port Size: 2 1/2 "



Goyen Cast Aluminum diaphragm valve CA62T 010-300 2 1/2 " AC230V 50/60Hz  pulse jet valve



Description
High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.



Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

Constuction Material:

Body  Aluminium (diecast)
Ferrule 304 SS
Armature  430FR SS
Seals  Nitrile or Viton (reinforced)
Spring 304 SS
Screws  302 SS
Clip Mild  steel  (plated)
Locknut Mild  steel  zinc passivated
Voltage DC: 24V, AC: 24V,48V,110V,230V
Working Temperature -  20 to + 85 ℃
Protection Class IP65
Coil Insulation Class F
Working Pressure 0.35-0.85Mpa
Diaphragm Seat   PA-6 or Viton  coated mild steel or High Density PE
Sealing & disc CR (chloroprene)
Diaphragm NBR(nitrile/buna-n) or Viton
Shading coil Copper
Connector DIN43650A





Weight:

Size Integral  Pilot Remote Pilot
(CA) Kg (lbs) (RCA) Kg (lbs)
20 0.60   ( 1.31 ) 0.38    ( 0.83  )
25 0.73   ( 1.61 ) 0.51    ( 1.13 )
35 1.04   ( 2.28 ) 0.83    ( 1.83 )
45 1.50   ( 3.30 ) 1.28    ( 2.83 )
50 2.89   ( 6.38 ) 2.68    ( 5.92 )
62 3.31   ( 7.30 ) 3.09    ( 6.82 )
76 4.77   ( 10.52 ) 4.56    ( 10.04 )



INSTAllATION:

1 The valves can be mounted in any position without affecting operation
2 Threaded pipe connection is: G = G (ISO 228/1) or compression fittings
3  When connecting piping or tubing to the G1/8 connection in the valve bonnet, the remote  pilot valve should be mounted as close as possible to the main pulse valve. Connection tubing lengths of 3 meter or less have little effect on the pulse response. Installations with over 3 meter of tubing must be tested under actual operating conditions. Tubing with Ø 6 mm O.D. is recommended for all installations
4  Ensure supply air is clean and dry.
5 Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
6   Apply moderate pressure to system and check for installation leaks.
7  For compression fitting types tightness is achieved by the compressed gasket on the blow tube
8  Other pipe threads are available on request
9  Installation/maintenance instructions are included with each valve
10 Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).



Maintenance:
Before conducting any maintenance activity on the system ensure that components are fully isolated from
pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.
Diaphragm and pilot inspection should be conducted annually






DIMENSIONS (mm) :

Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves







Product show:





Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves

Cast Aluminum Goyen Pulse Jet Valve Diaphragm Dust Collector Valves

Fitted Repair kits code: Diaphragm K5000 / K5004(Vition)
