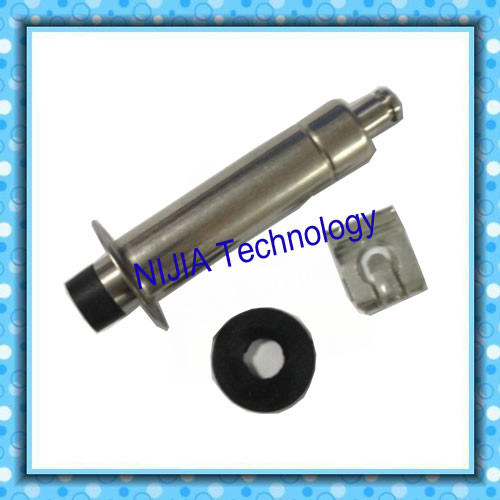

Goyen Pilot Solenoid Armature K0580 for Goyen RCA 5D2 Pulse Jet Valve

China Goyen Pilot Solenoid Armature K0580  for Goyen RCA 5D2 Pulse Jet Valve supplier
Goyen Pilot Solenoid Armature K0580  for Goyen RCA 5D2 Pulse Jet Valve supplier Goyen Pilot Solenoid Armature K0580  for Goyen RCA 5D2 Pulse Jet Valve supplier Goyen Pilot Solenoid Armature K0580  for Goyen RCA 5D2 Pulse Jet Valve supplier

Large Image :  Goyen Pilot Solenoid Armature K0580 for Goyen RCA 5D2 Pulse Jet Valve

Product Details:

Place of Origin: China
Brand Name: Goyen
Certification: CE/ISO9001
Model Number: K0580

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: 1-10 working days after received payment
Payment Terms: T/T,western Union,Paypal,Credit card
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: K0580 Material: Stainless Steel
Size: 40mm Customized: Yes
Applicability: Goyen T Series And DD Series Pulse Valves Working Temperature: -10℃ To+80℃



Goyen Pilot repair kit K0580 armature plunger for Goyen 5D2 pilot pulse valves



Goyen Pilot repair kit K0580 armature plunger for Pulse valve dual stage, integral pilot threaded body RCA5D2 pilot pulse valves
The product is developed to be used in ambients with temperature range from –10°C to +80°C

The K0580 plunger is normally equipped with NBR rubber seals.

The armature assembly is designed for more than 50x106 cycles.





Specifications:



Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.


The guide tube is made with brass (stainless steel is possible upon special agreement).


The plunger is normally equipped with NBR rubber seals. Other materials like FKM are available upon request. The armature assembly is designed for more than 50x106 cycles.



1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping

4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

5 . Integral pilot operated valves satisfy all relevant EC directives





General Data:



Ambient  temperature ············································· - 10 °C to + 85 °C

Quality of medium according to ISO 8573-1 ·········· compressed air class 4, 3, 4

Mounting  position ·················································· any ( preferably plunger in vertical direction )





Technical Data:



GENERAL

Differential pressure                    0,35 - 8,5 bar [1 bar = 100kPa]

Ambient temperature range       -20 to +85°C



fluid (✷)

temperature range (TS)

diaphragm (✷)

air

-20 to +85°C

CR (chloroprene)





ELECTRICAL CHARACTERISTICS

Coil insulation class                      F

Connector                                        Spade plug (cable Ø 6 - 10 mm)

Connector specification              ISO 4400 / EN 175301-803, form A

Electrical safety                             IEC 335

 Standard voltages  DC (=): 24V

Goyen Pilot Solenoid Armature K0580  for Goyen RCA 5D2 Pulse Jet Valve



Competitive Advantage:



1. Professional factory and excellent team.

2. Best service from the whole company.

3. High and stable quality.

4. Adequate inventory and quick delivery time.

5. Good package in order to void the problems in transportation.
