Class B H 2 Pin Hydraulic Solenoid Coil 20.2mm inner hole 20.2mm DC24V Solenoid Valve

China Class B H 2 Pin Hydraulic Solenoid Coil 20.2mm inner hole 20.2mm DC24V Solenoid Valve supplier
Class B H 2 Pin Hydraulic Solenoid Coil 20.2mm inner hole 20.2mm DC24V Solenoid Valve supplier Class B H 2 Pin Hydraulic Solenoid Coil 20.2mm inner hole 20.2mm DC24V Solenoid Valve supplier Class B H 2 Pin Hydraulic Solenoid Coil 20.2mm inner hole 20.2mm DC24V Solenoid Valve supplier

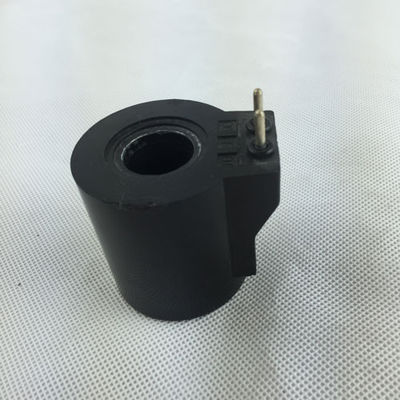

Large Image :  Class B H 2 Pin Hydraulic Solenoid Coil 20.2mm inner hole 20.2mm DC24V Solenoid Valve

Product Details:

Place of Origin: China
Brand Name: NIJIA
Certification: ISO9001CE
Model Number: NJT408

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: 1-10 working days after received payment
Payment Terms: T/T,western Union,Paypal,Credit card
Supply Ability: 6,000pcs per month
Contact Now
Detailed Product Description
Product Name: Hydraulic Solenoid Coil NIJIA407 Hole Size: 20.2mm
Standard Voltage: DC24V Standard Power: DC 33W
Coil Insulation: Class B H Duty Cycle:: 100%
Connection Type: 2 Pin Terminal Box Type Operating Temperature Range:: -40°C ÷ +50°C
High Light:

Hydraulic Solenoid Valve Coil

,

Solenoid And Coil

Hydraulic solenoid valve Class B H coil 2 PIn terminal type inset diameter 20.2mm DC24 solenoid  coil



The Hydraulic Solenoid coil NIJIA408  2 PIn terminal type inset diameter 20.2mm Coil suitable for hydraulic applications . It can be supplied with different power consumptions  according to specific requirements.
The NJT408 coil system includes a wide range of electrical coils suitable for cartridge valves for mobile hydraulics .





Specifications:


Brand name NIJIA
Model number NJT408
Voltage DC24V
Working Medium Air or oil
Operating Method Pilot action
Normal Power DC 33W
Color Black
Working Temperature  -40~50°C




• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 26 mm coil ).

• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 26 mm coil ).
• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
The use of other materials is possible upon special agreements . All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions . For use in special ambients with high humidity , we suggest the sealed or thermoset version.





Drawings:

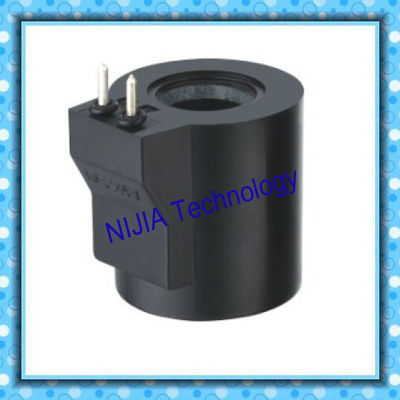

Class B H 2 Pin Hydraulic Solenoid Coil 20.2mm inner hole 20.2mm DC24V Solenoid Valve





Electrical Connections:



Degree of protection:  IP 54 ( EN 60529 )

With connector and suitable seals it can reach:

DIN 43650A  IP65

KOSTAL (M27X1) IP67

FLYING LEADS  IP67

AMP JUNIOR IP65

DEUTSCH DT04      IP69K

AMP SUPERSEAL    IP69K

METRIPACK2        IP69K

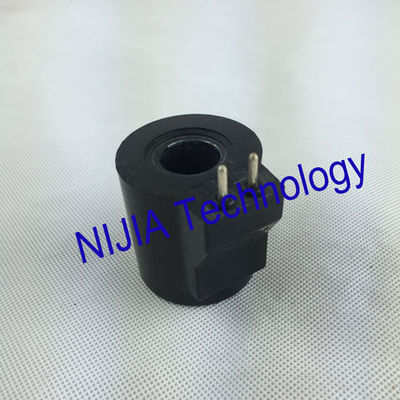

Class B H 2 Pin Hydraulic Solenoid Coil 20.2mm inner hole 20.2mm DC24V Solenoid Valve

Competitive Advantage:



1. Professional factory and excellent team .

2. High and stable quality .

3. Adequate inventory and quick delivery time .

4. Good package in order to void the problems in transportation .

5. Best service from the whole company .



Quality Standards :



The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
