Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure

China Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure supplier
Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure supplier Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure supplier Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure supplier Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure supplier

Large Image :  Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure

Product Details:

Place of Origin: China
Brand Name: Hyva
Certification: CE ISO9001
Model Number: PT-1220-220

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 5 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 10000 pieces per 10 working days
Contact Now
Detailed Product Description
Port Size: G1" Body Mateial: Aluminium Alloy
Working Pressure: Medium Pressure Ambient Temperature: -55-180
High Light:

combination Control Valve

,

automatic control valves

Red Hyva PT-1220-220 valve Power take off valve 14767322 Mounted in line or on the oil tank Single pressure



Product Features



Hyva offers a complete range of tipping valves to be used for different cylinder volumes. In the beginning of 2002



Hyva introduced the new PT-valve. The PT-valve can be used for flows from 80 up to 220 litre per minute. The



pressure settings are from 150 to 350 bar. The PT-valve has fully interchangeable pressure cartridges, so you



can adjust the pressure settings yourself. Dual pressure valves are available as well. For smaller flows you can



use the PT1140 or the 3DHM range.



The Hyva PT 1220 & 2220 tipping valves are constructed with a pilot operated pressure relief valve with fixed



pressure setting (by means of cartridges), which protects both the cylinder and the pump for overpressure. This



tipping valve is also designed to allow proportional lowering, which is of main importance when lowering (half)



loaded bodies. This tipping valve can be directly fitted to the Hyva oil tank, which reduces the number of hoses



and fittings and consequently the possibility of leakages. Additionally the Hyva tipping valve is unique in the



market as it has a peak pressure relief valve, to prevent serious damages in case of peak pressures.



The Hyva PT-valves & DHM valves can be mounted in line or directly on the oil tank. The PT-valve and the



DHM-valve can be mounted on the same block. The PT-valves are controlled with a Hyva air control or manually.



The DHM-valves are controlled by a cable control or by a Hyva air control.



Structure



Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure



Part no.  Description Max. press.
(Bar)
Ports Flow
(L/min)
Weight
(kg)
Kit no.
147 67 315 Valve PT - 1220 - 150 150 G1" 220 6.4 EC150
ED150
147 67 317 Valve PT - 1220 - 170 170 G1" 220 6.4 EC170
ED170
147 67 319 Valve PT - 1220 - 190 190 G1" 220 6.4 EC190
ED190
148 67 322 Valve PT - 1220 - 220 220 G1" 220 6.4 EC220
ED220
148 67 325 Valve PT - 1220 - 250 250 G1" 220 6.4 EC250
ED250
148 67 328 Valve PT - 1220 - 280 280 G1" 220 6.4 EC280
ED280
149 67 335 Valve PT - 1220 - 350 350 G1" 220 6.4 EC350
ED350



Delivery



1. The products will be sent out together by Fedex, DHL, TNT, or SF Express and so on.



2. Of cause, if you have a special requirements, we will do as you told!



3. Waiting for your inquiry.



Product List



  Ordering code type
1 23A-L Hydraulic Pressure
Dump Truck Controls Valves
2 34MQK-E20L Slow Down Dump
Truck Controls Manual Valves
3 45SQF-00 Combination Dump
Truck Controls Valves
4 Hyva-3D Hyva 3 Way Dump Truck Controls
With Hnbr Seal And Pressure Reset
5 F22-L 3/2 Way Dump Truck Controls Aluminum Hydraulic Limiting Valve
6 BKQF34-A Proportional 2 way Dump truck Controls with 0.5-12 Bar For CAB
7 BKQF34-B Automatic Locked Dump
Truck 2 Position Controls Valve
8 BKQF34-C Automatic Dump Truck
PTO 3 Position Controls Valve
9 5CV-D Five Hole Dump Truck
Combination  control valves
10 6CV-D 6 Hole Dump Truck
Combination  control valves
11 F34-B CAB Sectional Dump Truck Controls
12 FBH45-12 Parker Chelsea Proportional
Dump Truck Controls With Fitting
13 FBH45-10 Parker Chelsea Proportional
Dump Truck Controls
14 HXQF-24 Hydraulic Dump Truck
Controls Aluminum Valve
15 5551-8607010  MAZ Spare Parts Dump Truck Controls And Limit Distributor Valve
16 551605-8607010 MAZ Spare Parts Dump Truck Controls And Limit Distributor Valve
17 551605-8607010 MAZ Spare Parts Dump Truck Controls And Limit Distributor Valve
18 DCM01 2 Way Distributor valves with
lever stop on Tip and Low position
19 14750667H  Hyva 3 Way Dump
Truck Controls 14750667H
20 71094 Hyva 3 Way PTO Dump Truck Controls 71094B 223802



Quality Standards


The company for the products are brand new original products, no second-hand and refurbished products, or



leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not



responsible for returns, another of the company's sales of products enjoy one year from the date of shipment



quality assurance, according to the original quality standards, during warranty with product problems' need



confirmation testing by the manufacturer, the supplier to be solved ,the demand side due to storage, use, poor



maintenance caused by lower-quality product, and not raise objections.



Pictures show

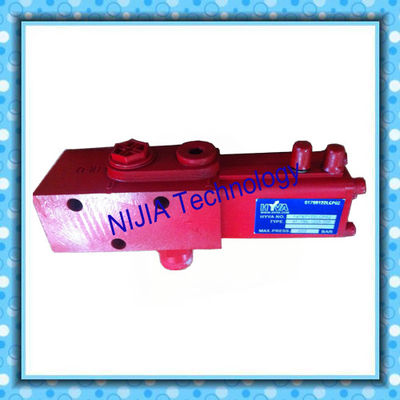

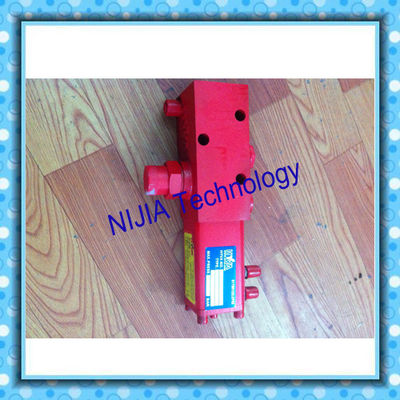

Red Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single PressureRed Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single PressureRed Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single PressureRed Hyva Dump Truck Valve 14767322 Mounted In Line On Oil Tank Single Pressure

In addition



The product include the diaphragm big/small and spring. If you have received the product has a problem, please



let me know, I will help you to solve the question first time.
