AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities

China AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities supplier
AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities supplier AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities supplier AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities supplier AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities supplier AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities supplier

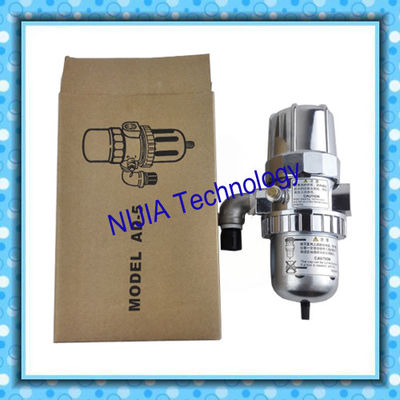

Large Image :  AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities

Product Details:

Place of Origin: CHINA
Brand Name: Orion
Certification: CE ISO9001
Model Number: AD-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 10000 pieces per 10 working days
Contact Now
Detailed Product Description
Material: Stainless Steel Operating Pressure: 0.29~0.98 MPa
Operating Temperature: 2~60℃ Inlet: 1/2"
Outlet: 1/2"



AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities

Description



Operating Manual
Orion High reliability Automatic drain valve AD-5
Refrigeration facilities

1. Note: The product is for industrial. Please attention to use.
2. For the proper operation of the product, please readthis carefully.

For security, be sure to comply with it.
Warning: if use it in a wrong way, may cause the user serious injury or death.
1. When clean, repair and check, please pumping out the compressed air in the pressure container. If there is residual air, the component will fly up, cause damage.
2. For installation, must according to this manual. Wrong installation will cause water leakage or air leakage.
3. Do not use other liquid, only the specified. Authorized liquid, is compressed air, Others may cause the product broken, like breakdown, leakage and etc.
4. Confirm the piping of drainage. Inappropriate piping, will cause leakage and get wet the facility.
5. When transfer and lend the products, please transmit the manual too. When sell or transfer the used products, in order to let the new user could use safely, please place the manual obviously.
6. No drain without water. Please close the handle of the inlet drainage device. Or, the valve core will be abnormal abrasion.
7. How to keep the product (Long time without use)
1). Dismantle the product after close the ball valve.
2). Drain out the water in drain-pipe. Get rid of the water in the drainage device. Observe from the bottom up, turn right, to drain out the water in the cup.
3). Keep away the garbage, dust and rainwater when keep the product.
Attention: If there's water residual in the drain-pipe, will cause the internal parts corrosion and damage, lead to breakdown.

Installation
1. Attention: As include plastic parts, cannot be installed at the environment which contains the following materials. Direct sunlight also should be avoid.

Chemicals Type Type Main products General use
Inorganic chemicals Acid Hydrochloric acid, Sulfuric acid, Fluorine acid, Phosphoric acid, Chromic acid, etc Metal pickling solution, Acidic degreaser, Leather coating liquid
Orgnic chemicals Aromatic hydrocarbon Benzene, Toluene, Xylene, Ethylbenzene, Styrene, etc Paint diluent
Alcohol Methyl alcohol, Medicinal alcohol, Cyclohexylethanol, Benzil alcohol, etc Antifreeze liquid
Phenol Methyl carbonate, Cresol, Naphthol, etc Raw material of Detergent and Phenol resin
Ketone Acetone, Methyl ethyl ketone, Cyclohexanone, Acetopheneone acid, etc
Carbon acid Formic acid, Acetic acid, Butyric acid, Acrylic acid, Oxalic acid, Phthalate, etc Chemical base of Dyeing agent and Aluminum coating treatment
Oxygen acid; Alkyd Glycolic acid, Lactic acid,
Malic acid, Citric acid, etc
Food additive
Amine Methylamine, Dimethylamine,
Ethylamine, Aniline, Acetainilide, etc
Brake oil additives, Antistatic agent, Dye for plastic

2. Installation method.
Note: When install the drain-pipe, please be sure the status in outlet. Inappropriate piping, will cause leakage and get wet the facklity.
1). Pipe size
Inlet: Rc1/2    Outlet: Rc1/2
2). Installation and piping of drainage
When the drain-pipe outlet is downward, the product should be vertical installation. Check valve must be installed at the drain-pipe inlet.

Application method
1. Regulate the water displacement
The working clearance of drainage device will be different, according to the load and pressure. Cannot regulate the valve when the cup filed with water.
2. Note: Water comes from the compressed air is limited, so please do not set for empty working continuous. If not, will cause:
1). Valve core will be abnormal abrasion.
2). The insterstice will get shorter.
3). Abrasion will be speed up.
4). Spray continuously.
3. Note: If there is too much oil, will cause:
1). Output will be reduced.
2). The interstice will get longer. If there is too much oil, please regulate the oil regulator.

Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount. But the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance. According to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise

objections.

Competitive advantage

Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.

In addition

The product include the diaphragm big/small and spring. If you have received the product has a problem, please let me know, I will help you to solve the question first time.

Delivery

The products will be sent out together by TNT, Fedex, DHL, or SF Express and so on. Of cause, if you have a special requirements, we will do as you told.

Pictures show

AD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration FacilitiesAD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration FacilitiesAD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration FacilitiesAD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration FacilitiesAD -5 Orion Stainless Steel Auto Drain Valve Instead Of PA -68 For Refrigeration Facilities
