Product Details:

Place of Origin: China
Brand Name: Findeva
Certification: CE ISO9001
Model Number: GT8 GT10

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: Negotiation
Packaging Details: Boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-5 work days
Payment Terms: Western Union, T/T, L/C,Paypal,Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description



GT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10S



MODEL GT
1. Aluminium Body
2. Rotary Vibrator
3. Frequency / Force adjustable by air pressure
4. Suitable for temperature up to 120 C
5. Force 135 N to 12000 N
6. No Lubrication Required

Structure and material
GT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10S
1. Extruded Aluminium Alloy Body
2. Hard Coated Aluminium Turbine Wheel
3/4. High Density Mass Positive Movement
5-7. Cavities Giving Negative Moment
8. Air Inlet
9. Air Exhaust
10. Base Mounting Holes
11. Special Pre-Lubricated Matched Sealed Bearings
Hard Coated Aluminium Endplates
12. With Left Hand Thread
13. With Right Hand Thread

Dimension
GT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10S
Type A B C D E F G/H Weight
mm mm mm mm mm mm BSP KG
GT4 40 28 70 56 10 6 G1/8" 0.2
GT6 40 28 70 56 10 6 G1/8" 0.2
GT6S 40 28 70 56 10 6 G1/8" 0.2
GT8 50 33 86 68 12 7 G1/8" 0.3
GT10 50 33 86 68 12 7 G1/8" 0.3
GT10S 50 33 86 68 12 7 G1/8" 0.3
GT13 65 42 113 90 16 9 G1/4" 0.7
GT16 65 42 113 90 16 9 G1/4" 0.7
GT16S 65 42 113 90 16 9 G1/4" 0.7
GT20 80 56 128 104 16 9 G1/4" 1.2
GT25 80 56 128 104 16 9 G1/4" 1.2
GT25S 80 56 128 104 16 9 G1/4" 1.2
GT30 100 73 160 130 20 11 G3/8" 2.2
GT36 100 73 160 130 20 11 G3/8" 2.4
GT36S 100 73 160 130 20 11 G3/8" 2.6
GT40 120 83 194 152 24 17 G3/8" 3.7
GT48 120 83 194 152 24 17 G3/8" 3.9
GT48S 120 83 194 152 24 17 G3/8" 4.3

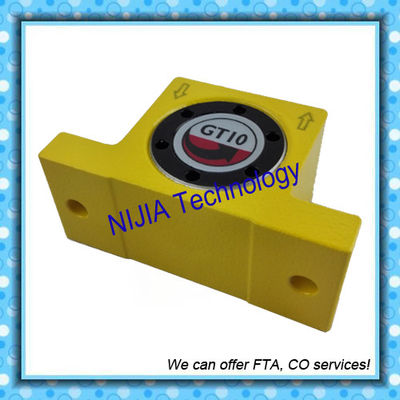

Product Show

GT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10SGT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10SGT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10SGT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10SGT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10SGT8 GT10 Rotary Findeva Vibrators Pneumatic Air Turbine GT8S GT10S



Competitive Advantage :



Our product features Our Services Guarantee
1) Good quality 1) Free Samples (Customer pay for the delivery cost)
2) Produce according to Customers’ instruction 2) Registration support
3) Competitive price 3) Prompt respond (Reply with 24 hours)
4) Professional Packaging 4) Photos/videos are available during production
5) None delay shipment

5) Loading inspection , and send loading photos

before shipment
