|Port Size:||1.5 Inch||Mterial:||NBR / Buna|
|Mounting Hole Number:||6 Holes||Colour:||Black|
|Media:||Air||Working Pressure:||0.35~0.85 MPa|
|Used For:||Pulse Valves||Shape:||Flat Gasket|
Diaphragm Pulse Valve,
Dust Collector Pulse Valves
1. Diaphragm repair kit C113825 was suitabled for the pulse valve of ASCO series, G353A045. C113825 was made
of NBR / Buna.
2. If you need a large quantity, we can give a big discount for you. Welcome your inquiry.
3. The products we have many in store, it will be sent out ASAP if we have received the payments.
|Ordering Code||Fitted Valve Code||Valve port size||Material|
|C113443||G353A041, G353042||3/4", 1"||TPU / NBR|
|C113444||SCG353A043, SCG353A044||3/4", 1"||TPU / NBR|
|C113825||G353A045||1 1/2"||NBR / BUNA|
|C113826||G353A046||1 1/2"||NBR / BUNA|
|C113827||SCG353A047||1 1/2"||NBR / BUNA|
|2" , 2 1/2"||NBR / BUNA|
|C113928||SCEX353.060||3"||NBR / BUNA|
|NOTE: THE VITON MATERIAL IS ALSO AVAILABLE|
The products in the form all on sale, you can order by the code. We all have in store.
The company for the products are brand new original products, no second-hand and refurbished
products, or leave a compensable ten and return the full amount. But the buyer due to our purchase of
model error is not responsible for returns, another of the company's sales of products enjoy one year
from the date of shipment quality assurance. According to the original quality standards, during warranty
with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the
demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise
Pulse valve featues
1. The pulse diaphragm valves are especially designed for dust collector service applications, combining
high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2. Built-in silencers guarantee noise free operation and avoid foreign particles entering the valve.
3. The high flow, angle type bodies, springless construction, in combination with the special diaphragm
assemblies give the unique operating features required for dust collector service applications.
4. The design with integral compression fittings will facilitate installation because there is no need for
5. The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and
explosionproof solenoids for use in potentially explosive atmospheres (gas & dust) according to Directive
ATEX 94/9/EC can be mounted on the same basic valve (see page 45 till 52).
You can pay your orders in many ways, such as Western Union, T/T, L/C, Paypal, Credit card and so on.
If this still can not satisfied with you, please let me know, I will give you a hand.
The goods will be sent out together by DHL, Fedex, TNT or SF Express. Of cause, if you have special
requirements, we will do what you say.

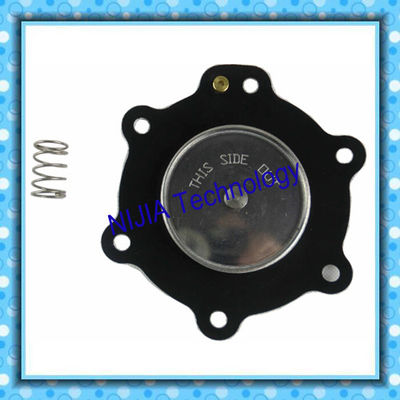

The product include the diaphragm C113825 and spring. If you have received the product which has a
problem, please let me know, I will help you to solve the question first time.
