Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve

China Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve supplier
Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve supplier Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve supplier Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve supplier Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve supplier Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve supplier Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve supplier

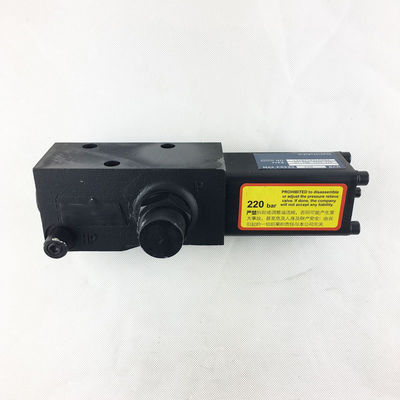

Large Image :  Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve

Product Details:

Place of Origin: CHINA
Brand Name: Hyva
Certification: CE ISO9001
Model Number: PT1220

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 2000 pieces per 10 working days
Contact Now
Detailed Product Description
Port Size: 1/4" Body Mateial: Aluminium Alloy
Working Pressure: 5 Bar To 10 Bar Working Temperature: -40° To +80°



Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve

Tipper Air Control Valves are designed to enable easy controls of hydraulic functions as well as controlling air from the cabin of vehicles.

These are manufactured by adhering to preset industry norms and are compatible with makes of major vehicle manufacturers.



Quick Detail:



1) Power: Hydraulic
2) Material: Aluminum
3) Automatically locked in stop and fall position
4) Working medium:Air
5) Operating pressure(Bar): up to 12
6) Working temperature: -40℃-/+80℃
7) Nominal diameter(mm) 4
8) Weight: 0.6kg




Product Features:
1.Body Material: Aluminum
2.Seal Material: HNBR
3.Working Pressure: 0.5-12 Bar
4.Ambient temperature: -55℃-180℃
5.Port Size: M10*1
6.Automatically locked in stop and fall position
7.Transposition clearly
8.Able to coordinate with the Pneumatic control valve
9. Small Operating force
10.Simple operation
11.Easy to install
12..Long service life




Drawings

Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve




Mounting of the air control:

When the air control is mounted next to the drivers seat a strong support should be used.
Available supports are:
- 092 32 002 for on-seat mounting
- 092 05 002 for on-floor mounting
Use always rubber grommets to protect air tubes and to prevent that dust and water enters the cabin.
For trouble free life of the entire pneumatic system the air system must be free from water.
The air control should be mounted in such a way that:
1 it is easy to reach by the operator.
2 it is no obstacle when entering or leaving the cabin.
3 it is clear from any moving parts such as drivers seat and closed door.
The air exhaust connection must be brought outside the
cabin to prevent air entering the cabin, which gives the following disadvantages:
1 noise
2 blown up sand and dust
3 when alcohol is used to prevent the pneumatic system against frost the alcohol vapour will enter the cabin
o Make sure that air tubes:
1 are not too close to sharp objects.
2 are clear from moving parts.
3 are clear from exhaust and compressor lines.
4 can not get kinked.
5 are not too long.
note: The air supply must always be tapped off from a accessory air tank or auxiliary valve and the
pneumatic system must be protected with a charging valve.
( see guide - lines from truck manufacturer )
For operation of the air control see the Hyva
operation and maintenance instructions





Note:

The air supply must always be taken from an accessory air tank or auxiliary valveand the pneumatic system must be protected with a charging valve.



Hyva Hydraulic PT valve PT1220 220Bar Dump Truck Valve





Competitive Advantage:



Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment

5) Loading inspection, and send loading photos before shipment.





Quality Standards :



The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections



Warranty:



All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
