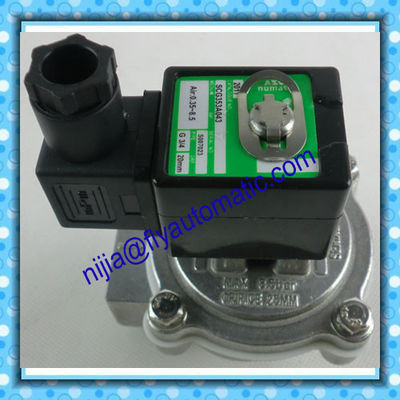

ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043

China ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043 supplier
ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043 supplier ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043 supplier ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043 supplier

Large Image :  ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043

Product Details:

Place of Origin: China Mexico
Brand Name: ASCO or OEM
Certification: CE ISO9001
Model Number: SCG353A043

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: USD 15 -38 Per piece
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Payment Terms: Western Union, T/T, L/C,Paypal,Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description
Body: Aluminum Core And Plugnut: Stainless Steel
Core Spring: Stainless Steel Working Pressure: 0.35-0.85Mpa
Sealing & Disc: CR (chloroprene) Diaphragm: TPE , NBR(nitrile/buna-n) Or Viton
High Light:

Goyen Diaphragm Valves

,

Diaphragm Pulse Valve



ASCO 24V DC 230V AC integral pilot valve 3/4" SCG353A043 threaded  pulse jet valve





FEATURES:
1. The pulse diaphragm pulse valves 3/4" SCG353A043 threaded are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to provide reliable and economical operation,Integral compression fittings for fast, easy, secure installation
2. The high flow, angle type bodies in combination with the special main diaphragm
   assemblies give the unique operating features required for dust collector service applications
3. Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD,The components satisfy all relevant EC directives





Specification:



Ordering Code Port Size Orifice Flow Value Coil type
G Threaded mm m3/h l/min
SCG353A043 3/4" 20 14 233 400325
SCG353A043C 3/4" 20 14 233 0200
SCG353A044 1" 25 17 383 400325
SCG353A044C 1" 25 17 383 0200



INSTAllATION:

1 The valves can be mounted in any position without affecting operation
2 Threaded pipe connection is: G = G (ISO 228/1) or compression fittings
3  When connecting piping or tubing to the 1/8 " connection in the valve bonnet, the remote ASCO pilot valve should be mounted as close as possible to the main pulse valve. Connection tubing lengths of 3 meter or less have little effect on the pulse response. Installations with over 3 meter of tubing must be tested under actual operating conditions. Tubing with Ø 6 mm O.D. is recommended for all installations
4  For compression fitting types tightness is achieved by the compressed gasket on the blow tube
5  Other pipe threads are available on request
6  Installation/maintenance instructions are included with each valve
7  Spare parts kit and replacement coils are available



OPTIONS:



1 Valves can also be supplied with FPM (fluorelastomer) diaphragms and seal materials. Use the appropriate optional suffix 'V' for identification
2 Sequential controller for pilot solenoid valves
3  Pilot boxes containing 2 to 12 pilot solenoid valves
4  Pilot solenoid valves can be equipped with explosionproof solenoids for hazardous locations according to “ATEX” and national standards

DIMENSIONS (mm), WEIGHT (kg):

ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043

Ordering Code A B C D E F G H J K Weight
SCG353A043 75 45 27 51 89 75 39 92 113 130 0.72
SCG353A043C 65 38 20 51 89 75 39 92 113 130 0.65
SCG353A044 75 45 27 51 89 75 39 92 113 130 0.7
SCG353A044C 65 38 20 51 89 75 39 92 113 130 0.62



Product show:

ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043ASCO Pulse Valve Aluminum Pilot Operated Valve 24V DC 3/4 " SCG353A043
