|Port Size:||2 1/2"||Mterial:||Nylon Or Synthetic Rubber|
|Media:||Air||Working Pressure:||0.10~0.85 MPa|
|Used For:||Pulse Jet Valve||Standard Temperature:||-20℃ +80℃|
Goyen Diaphragm Valves,
Dust Collector Pulse Valves

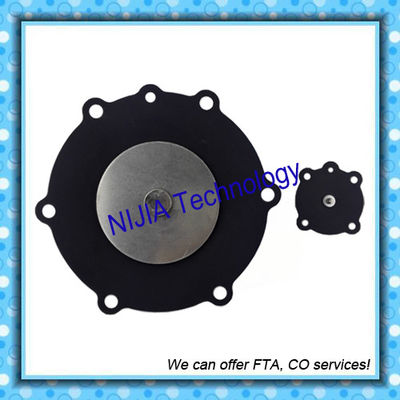

1. The repair kit is for Korea diaphragm valve Jisi 65 in dust-removal system.
2. It is manufactured with special nylon and synthetic rubber, so it is excellent even in any temperature and environment.
3. Diaphragm of the valve, the crucial part has a revetment between shock absorbent plate and shield plate, so guarantee lower noise and long life by preventing clearance & buffer role.
4. The repair kit has unique geometric diaphragm design, high speed from multiple diaphragm to reach the highest peak in an instant.
5. We use high quality material, the collection equipment efficiency can be improved, the energy loss also can be reduced.
6. This diaphragm has large air - outlet, so the air can get throgh very smoothly.
7. The lifespan is about 2.0 million cycles.
8. The diaphragm repair kits we have many in store, it will be sent out ASAP if we have received the payments.
9. If you need a large quantity, we can give a big discount for you. Welcome your inquiry.
Note: the Viton ( for high temperature performance ) material is also available.
The repair kits
1. The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2. The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions.
3. The design with integral compression fittings will facilitate installation because there is no need for threaded piping.
4. Integral pilot operated valves satisfy all relevant EC directives.
5. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for pulse jet valves service applications.
The valve's common characteristics
1. Solenoid coil has one-touch terminal block with easy electrical wiring. For outdoor use, use aluminum die-casting material body.
2. A timer controller for quick opening and closing of valve and a waterproofed, up to 180'C heat resistance coil are used.
3. Diaphragm is opened by the movement of solenoid coil, instantly(0.1~0.9sec) large amounts of compressed air is discharged at once.
4. Used for dusting off the surface of the FILTER BAG.
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount. But the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance. According to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
The product include the diaphragm big/small and spring. If you have received the product has a problem, please let me know, I will help you to solve the question first time.
The products will be sent out together by TNT, Fedex, DHL, or SF Express and so on. Of cause, if you have a special requirements, we will do as you told.
