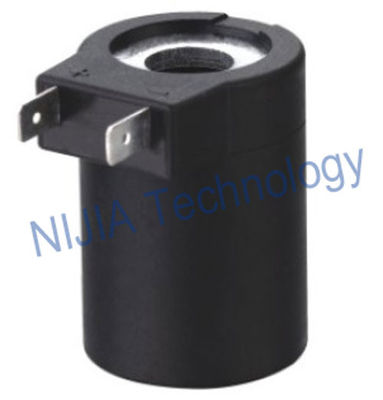

DC12V Car Pressure Reducing Valve Coil Φ 14.1 × 51.3mm 22W BRC series

China DC12V Car Pressure Reducing Valve Coil Φ 14.1 × 51.3mm 22W BRC series supplier
DC12V Car Pressure Reducing Valve Coil Φ 14.1 × 51.3mm 22W BRC series supplier DC12V Car Pressure Reducing Valve Coil Φ 14.1 × 51.3mm 22W BRC series supplier DC12V Car Pressure Reducing Valve Coil Φ 14.1 × 51.3mm 22W BRC series supplier

Large Image :  DC12V Car Pressure Reducing Valve Coil Φ 14.1 × 51.3mm 22W BRC series

Product Details:

Place of Origin: China
Brand Name: NIJIA
Certification: ISO9001CE
Model Number: NJT212

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: 1-10 working days after received payment
Payment Terms: T/T,western Union,Paypal,Credit card
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Color: Black,or Customized Inner Hole: Φ 14.1 × 51.3mm
Standard Power Consumption: 22W Coil Insulation: H
Connection Type: DEUTCH Material: Thermoplastic
Standard Operating Voltages:: 12-24 VDC Other Voltages On Request. Operating Temperature Range:: -40°C ÷ +120°C



BRC pressure reducer Car Pressure Reducing Valve Coil Φ 14.1 × 51.3mm DC12V 22W BRC series



The NJT212 coils are designed thermoplastic composite material or flame retardant temperature resistant resin

,widely used in Pressure Reducing Valve etc.



The NJT212 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG LNG and CNG system.



BRC type Relieve Valve Coil NJT212 suitable for automotive valve system.

Φ 14.1 × 51.3mm DC12V 20W ,Other special voltage and power could be customized



It can be supplied with different power consumptions  according to specific requirements.





Specifications:



item relieve valve coil
product code NJT212
specification 6.3 × 0.8mm
applied of voltage DC12V
resistant breakdown voltage ≥1800V 1MA/min
voltage range ±10%
insulation class H grade
protection grade IP65
ED 100%
temperature resistant range B. H
coated materials Thermoplastic composite material or flame retardant temperature resistant resin
advantages high temperature resistant, excellent moistureproof property
applications widely used in compression release valve etc.



Drawings:

DC12V Car Pressure Reducing Valve Coil Φ 14.1 × 51.3mm 22W BRC series





Competitive Advantage:



High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

 system, pressure reducer,motorcycle device etc.



Coil other parameter:



Insulation temperature class

A

E

B

F

H

Maximum allowable temperature/degree

105

120

130

155

180

Permissible temperature rise(K)

60

75

80

105

125

Performance reference temperature/degree

80

95

100

120

145

Thermal margin

5

5

10

10

15

Maximum ambient temperature/degree

40

40

40

40

40
