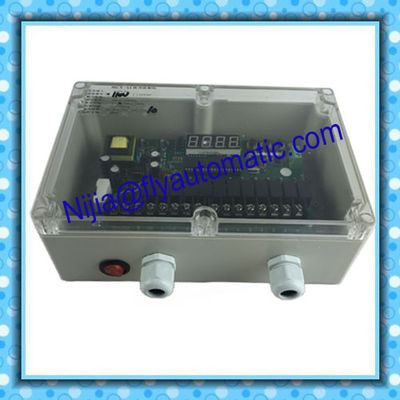

Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64

China Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64 supplier
Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64 supplier Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64 supplier Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64 supplier

Large Image :  Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64

Product Details:

Place of Origin: China
Brand Name: ASCO
Certification: CE
Model Number: PLC-64

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD35-200 Per Unit , price negotiatable based on large quantity
Packaging Details: Nylon bags , Bubble bags , Cartons , Pallets
Delivery Time: Within 3-15 working days after payment , Customized items negotiatable
Payment Terms: L/C , T/T , Western Union , Aliexpress , Paypal ( Visa , Master card
Supply Ability: 10000 units per month
Contact Now
Detailed Product Description
Model: PLC-64 Body Material: Engineering Plastic
Rated Input Voltage: DC220V Rated Output Voltage: AC36V
Size: 248*188*105mm Temperature: -25℃ - +60℃
Output Cycle Interval: 0-250Mins

Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64



PLC-64 Online deashing controller is the main equipment of the bag type dust collector cleaning system .

After setting up , auto save , the data will not lose after shut down and power off , Keep the same condition  after restart . Made by high technology , it is of high quality and has Long service life . It can be used by many dust collectors . The item adopts the latest anti - jamming design , ensure the system stability , more reliable . It also adopts intelligent microprocessor circuit design so it is flexible control , stable performance , operation visually and convenient , without any operation to adjust the potentiometer .  Using 3 soft-touch keyboards to set the working condition .



Quick Detail :

1)  Weight

1.8kgs

2) Rated output current

1A

3) Temperature range

-25℃ - +60℃

4) Output Pulse Width adjustment range

 50ms-2500ms

5) Output intervals

1-250ms

6) Size

248*188*105mm

7) Rated input voltage

DC220V

8) Rated output voltage

AC36V



Drawings :

Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64

Intelligent Pulse Jet Valve 64 Ways Pulse control instrument PLC-64







Specification :

1. Output Pulse Width adjustment range : 50ms-2500ms
2. Small Operating force
3. Color : transparent
4. Body Material : engineering plastic

5. Rated input voltage : DC220V
6. Rated output voltage :AC36V
7. Long service life
8. Transposition clearly
9. Easy to install

10. Simple operation









Quality Standards :

Made of good material , it is of high quality and has Long service life . The item has passed the strict aging test before ex-factory  , no second hand and refurbished products , or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns .



Warranty :

The company supplies the free maintenance if any quality problem within 6 months since the date of the ex-factory , except the following conditions: strong corrosive gases , conductive dust , violent vibration or shock .



Competitive Advantage :

Our product features

Our Services Guarantee

1) Good quality

1) Free Samples (Customer pay for the delivery cost)

2) Produce according to Customers' instruction

2)  Registration support

3) Competitive price

3) Prompt respond (Reply with 24 hours)

4) Professional Packaging

4) Photos/videos are available during production

5) None delay shipment

5) Loading inspection , and send loading photos before

 shipment
