|Ambient Temperature:||-20℃~+60℃||Osition Indicator:||Dome Type 0°~90°|

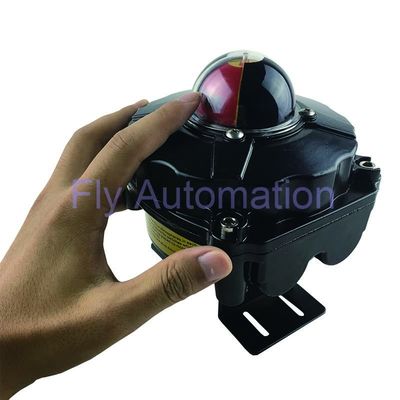

ITS300 Explosion Proof position monitoring Pneumatic valve type feedback device Switch feedback
ITS 300 series are designed suitable for valve and actuatorsin hazardous area application, having compact but robustconstruction
conforms to IEC60079-0:2007,
IEC60079-1 :2007, EN60079-0:2006 and EN60079- 1:2007,also suitable in Zone 1 and 2, and ingress protection IP67,Standard aluminum
housing provides reliable explosion proofperformance.
Rigid and compact design constructed from aluminumalloy die-casting capable of operating even in arduous conditions.
|Enclosure||Explosion proof Ex d IIC T6 Gb, IP67, O-ring sealed||IP 68|
|Outside coating||Epoxy-Polyester outside against corrosion||Nylon Coating
Special color Coating
|Ambient temperature||-20℃ ~+80℃
(Explosion proof type: -20℃~+60℃)
and lower (-40℃) temperature
|Cable entries||2 - PF3/4, other standard threads||NPT3/4, M20x1.5, M25x1.5)|
|Terminal block||8 nos of terminal strips
(6 for switches, 2 for solenoid valve power)
|Position indicator||Dome type 0°~90°||Others(3 way L-port, T-port)|
|Mounting bracket||Stainless steel acc. to VDI/VDE3845
NAMUR, SS1, SS2 as standard
|SS3, MT1 as option|
|Switches (sensors)||2-SPDT mechanical switch(Form C)||SS3, MT1 as option|
