|Product Name:||Welding Machine Solenoid Coils||Insulation Class:||F/H|
|Normal Voltage:||DC24V||Connection Type:||Lead-type|
|Voltage Tolerance:||± 10%||Duty Cycle::||100%|
|Temperature Range::||–20°C ÷ +50°C||IP:||00/66|
Solenoid Valve Coils,
24v Solenoid Coil

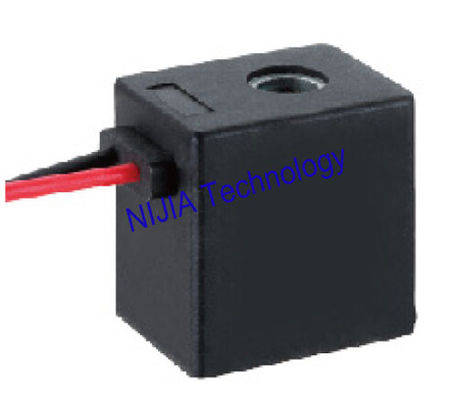

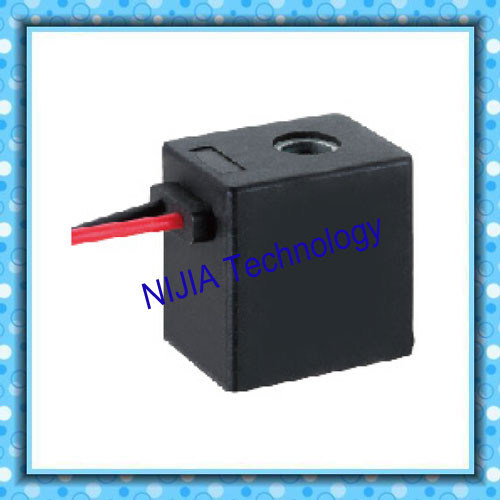

Welding machine solenoid coil by Nijia are designed for welding machine valves . All solenoids of this system have the guide tube with a diameter of 12 mm. The Plunger diameter is 8mm .
The system is designed for use with air . Thermoset material will help the coil more stable and safely.
This type solenoid coil,could be widely used to F , H series solenoid valve coil
|Product type||Welding machine solenoid coil|
|Insulation Class||F , H|
|Connection Type||Flying lead type|
|Applicability||welding machine series solenoid valves
1 . heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
2 . class H wire 200°C according to IEC 317-13
3 . built-in magnetic yoke made by low carbon iron
4 . encapsulation with high quality specially designed glass filled nylon.
The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65 (with connector) or IP67 for the flying lead version. The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, please, take contact with Amisco. The coil is also in conformity with 94/9/EC ATEX for electrical apparatus of group II, category 3 (Ex nA II 3 GD T4 o T5).
Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.
The guide tube is made with brass ( stainless steel is possible upon special agreement ).
The plunger is normally equipped with NBR rubber seals.
Other sealing materials like FKM are available upon demand.
The armature assembly is designed for more than 50x106 cycles.
