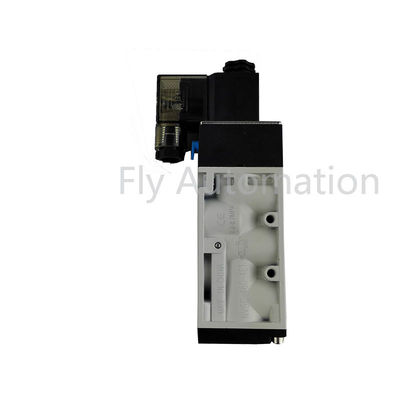

Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve

China Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve supplier
Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve supplier Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve supplier Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve supplier Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve supplier Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve supplier Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve supplier

Large Image :  Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve

Product Details:

Place of Origin: CHINA
Brand Name: AIRWOLF
Certification: CE
Model Number: MVSC-460-4E1

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 2000 pieces per 10 working days
Contact Now
Detailed Product Description
Proof Pressure: 1MPa Voltage: AC110V, 220V (50/60)Hz, DC24V
Medium: Air Model: MVSC-460-4E1
Port Size: G1/2

MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve





Model
3E1
3E2
4E1
4E2
4E2C.P.R
Bore No
15A
Port size
G1/2
No. of port
3
5
No. of position
2
3
Medium
Air
Operating pressure range
0.2~0.8 MPa
0.2~0.8 MPa
Operating pressure (LP)
0~0.8 MPa
External pilot pressure (LP)
0.2~0.8 MPa
0.2~0.8 MPa
Proof pressure
1 MPa
Effective orifice
60 mm2
50mm2
30mm2
Ambient temperature
-5~+50℃ (No freezing)
Voltage
AC110V, 220V (50/60)Hz, DC24V
Power consumption
AC=4.8/4.4VA, 6/4.9VA DC=2W
Available voltage range
±10%
Insulation class
F class
Weight
353g
439g
330g
452g
634g



Electromagnetic valve is an industrial equipment controlled by electromagnetic force. It is an automatic basic component to control fluid. It belongs to actuator and is not limited to hydraulic and pneumatic. It is used in industrial control system to adjust the direction, flow rate, speed and other parameters of medium. Solenoid valves can cooperate with different circuits to achieve the desired control, and the control accuracy and flexibility can be guaranteed. There are many kinds of solenoid valves. Different solenoid valves play different roles in different positions of the control system. The most commonly used are one-way valves, safety valves, direction control valves, speed control valves and so on.
