|Product Name:||EVI7/9 4V210 Type||Insulation Class:||F/H|
|Normal Voltage:||24-110-220-230VAC 12-24VDC||Connection Type:||DIN43650B|
|Voltage Tolerance:||± 10%||Duty Cycle::||100%|
|Temperature Range::||–20°C ÷ +50°C||IP:||00/65|
24VDC Solenoid Coil,
Solenoid Valve Coils

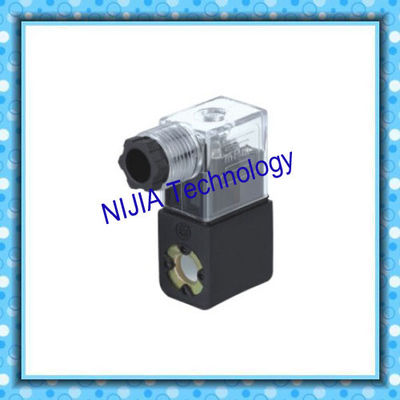

DIN43650B Amisco Pneumatic Solenoid Coil for 5/2 Way , 3/2 Way Solenoid Valve
The EVI7 S9 system by AMISCO includes a wide range of solenoids, coils and operators, designed for pneumatic valves. All solenoids of this system have the guide tube with a diameterof 9 mm and the plunger with a diameter of 8 mm.
The system is designed for use with air.
This type EVI7/9 could be widely used to Airtac 4V110 4V210 4V410 and 4V440 series solenoid valves.
|Normal Voltage||AC220V DC24V|
|Normal Power||AC : 4-8VA DC : 3-8W|
|Insulation Class||F , H|
|Applicability||4VSeries solenoid valves
• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• Class H wire 200°C according to IEC 60317-13
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 22 mm coil ).
The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version
Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.
The guide tube is made with brass ( stainless steel is possible upon special agreement ).
The plunger is normally equipped with NBR rubber seals.
Other sealing materials like FKM are available upon demand.
The armature assembly is designed for more than 50x106 cycles.
