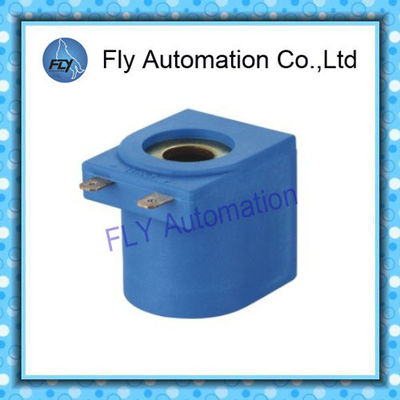

Lovato Single Point Pressure Reducer LPG Valve Coil Φ 13.8 × 44.6mm for Automotive
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | NJT205 | Inner Hole: | Φ 13.8 × 44.6mm |
|---|---|---|---|
| Standard Power Consumption: | 17W Or Customized | Coil Insulation: | F Or H |
| Connection Type: | Insert 6.3*0.8mm | Material: | Polyamide 66 |
| Standard Operating Voltages:: | 12-24 VDC Other Voltages On Request. | Operating Temperature Range:: | -40°C ÷ +120°C |
| High Light: | solenoidal coil,solinoid coil |
||
Lovato single point pressure reducer LPG CNG LNG Automotive Valve Φ 13.8 × 44.6mm insert type
The Automotive valve coil NJT205 suitable for Lovato single point pressure reducer.
It can be supplied with different power consumptions , according to specific requirements.
Other special voltage and power could be customized.
The NJT205 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG CNGand
LNG system.
The NJT205 coils are designed thermoplastic composite material or flame retardant temperature resistant resin.
Specifications:
1. Normal voltage :24VDC 12VDC
2. Normal power : 17W 18W 20W (other voltage and power can be customized)
3. Color : Bule,(can be customized)
4. Inner Hole : Φ 13.8 × 44.6mm
5. Protect class:IP65
6. Material : Polyamide 66
7. Insulation class : H
8. Connection Type : 6.3 * 0.8mm
9. Used to Lovato pressure reducer
10. Heavy duty long service life
Drawings:
Applications
High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified
system, pressure reducer,motorcycle device etc.
Coil other parameter:
|
Insulation temperature class |
A |
E |
B |
F |
H |
|
Maximum allowable temperature/degree |
105 |
120 |
130 |
155 |
180 |
|
Permissible temperature rise(K) |
60 |
75 |
80 |
105 |
125 |
|
Performance reference temperature/degree |
80 |
95 |
100 |
120 |
145 |
|
Thermal margin |
5 |
5 |
10 |
10 |
15 |
|
Maximum ambient temperature/degree |
40 |
40 |
40 |
40 |
40 |
Competitive Advantage:
1. Best service from the whole company.
2. Professional factory
3. High and stable quality
4. Quick delivery time
5. Good package,Standard export packing
