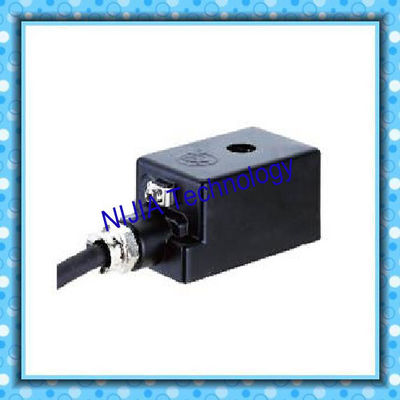

Black Specific 0200 Explosion Proof Solenoid Coil 11.4mm OD ExmbIIT4

China Black Specific 0200 Explosion Proof Solenoid Coil 11.4mm OD ExmbIIT4 supplier
Black Specific 0200 Explosion Proof Solenoid Coil 11.4mm OD ExmbIIT4 supplier Black Specific 0200 Explosion Proof Solenoid Coil 11.4mm OD ExmbIIT4 supplier

Large Image :  Black Specific 0200 Explosion Proof Solenoid Coil 11.4mm OD ExmbIIT4

Product Details:

Place of Origin: China
Brand Name: NIJIA
Certification: CE/ISO9001
Model Number: EX1360(11)

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: 1-10 working days after received payment
Payment Terms: T/T,western Union,Paypal,Credit card
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Product Name: EX1360(11) Insulation Class: ExmbIIT4
Normal Voltage: 220VAC 24VDC Connection Type: Flying Lead-type
Normal Power: AC15VA DC11W Customized: Yes
Applicability: Herion Color: Black
High Light:

explosion proof solenoid valve

,

air solenoid valve



Specific 0200 Explosion proof solenoid coil insert diameter 11.4mm ExmbIIT4 ex-proof solenoid valve



Spcific 0200 coil insert diameter is 11.4mm, could be applied to customized solenoid valve Norgren Herion series solenoid valve , and pulse valve. All solenoids of this system have the stable power and good insulation , could be able to adapt to most environment .



Ordering Code EX1360 (11)
Voltage Rating AC220V AC110V DC24V DC12V,Other voltage can be customized
Power Rating AC: 22VA DC: 16W,Other voltage can be customized
Ex-proof Class Ex mbⅠ/ⅡT4
Protection Class IP66
Connection  Flying leads  (3m Cable)
Applied to Norgren Herion series solenoid valve , and pulse valve



The product is developed to be used in ambients with temperature range from -50°C to +50°C, and it has a

 power consumption of 3.8W for type T4 and 3W for type T5.

The coil fits all standard operators 3/2 or 2/2 way NC or NO , threaded or flange types.

All main voltages are available.

Other specific voltage and power could be customized as your request.





Specifications:



Brand name : NIJIA

Model number : EX1360(11)

Voltage : DC 12V-24V  AC24V-380V

Working Medium : Air,Water,Oil

Operating Method : Direct action

Working Temperature : -50~50°C

Connection type : Flying Lead-type

Qualification Certificate : CNEX13.2864



Explosion Protection Class:





Specific marking of explosion protection.

II

Group II – Electrical apparatus for places with a potentially

explosive atmosphere, other than mines susceptible to fire dump.

2

Category 2 – see the board below.

G

Explosive gas atmospheres.

D

Explosive atmosphere in the presence of combustible dust.

Ex

The symbol Ex which indicates that the electrical apparatus corresponds to one of the

 protection type (EN 60079-0).

mb

Type of protection for gas – encapsulation “m”, level “mb”.

tb

Type of protection for explosive dust atmospheres –protection by enclosure.

IIC

Electrical equipment of Group II is subdivided according to

the nature of the explosive gas atmospheres – IIC, a typical gas is hydrogen.

IIIC

Electrical equipment of Group III is subdivided according to the nature of the explosive

dust atmospheres – IIIC, conductive dust.

T5 or T4

Temperature Class. T5 or T4.

Gb

Equipment   protection   level   [EPL]   for   explosive   gas atmospheres.

Db

Equipment   protection   level   [EPL]   for   explosive   dust atmospheres.

IP66

The degrees of protection provided by an enclosure against

ingress  of solid  foreign objects,  dust  (first  number)  and water (second number).





Drawings:

Black Specific 0200 Explosion Proof Solenoid Coil 11.4mm OD ExmbIIT4Black Specific 0200 Explosion Proof Solenoid Coil 11.4mm OD ExmbIIT4







Competitive Advantage:



Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment

5) Loading inspection, and send loading photos before shipment.
