|Product Name:||DMF Solenoid Coil||Insulation Class:||F Or H|
|Normal Voltage:||AC220V DC24V||Connection Type:||DIN43650A|
|Voltage Tolerance:||± 10%||Duty Cycle::||100%|
|Temperature Range::||–20°C ÷ +80°C||Applicability:||DMF Pulse Valve|
24 volt dc solenoid coil,
24 volt solenoid coil

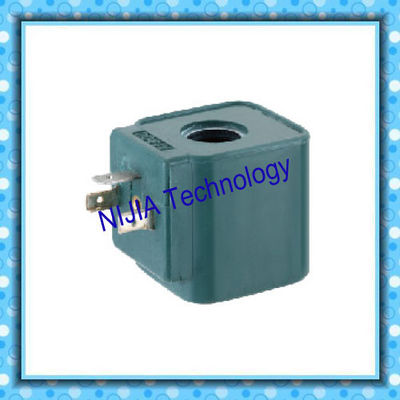

The DMF pulse valve solenoid coil 24V DC Connector plug DIN43650A
inner hole diameter 13.5mm high 41mm
|Product NO.||DMF solenoid coil|
|Product type||DMF series|
|Insulation Class||F , H|
|Applicability||DMF pulse jet valves|
Notes: please tell me the voltage you need ,if no remark ,
you will receive 24V DC .
The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65.
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version.
|Voltage tolerance:||± 10%|
|Temperature range:||–10°C ÷ +80°C|
|Standard voltages:||24 - 110 - 230 VAC|
|12 - 24 VDC|
|Other voltages on request|
The DMF coil is fastened to the plunger guide tube by means of a knurled nut for ease of change over without interrupting the pneumatic circuit .
The suggested interface dimensions of the valve body are shown on the right side .
Any change to the prescribed dimensions can effect the performances of the solenoid operator .
