Customized 10W Pulse Solenoid Valve TURBO Coil DIN43650A with 3 Pin

China Customized 10W Pulse Solenoid Valve TURBO Coil DIN43650A with 3 Pin supplier
Customized 10W Pulse Solenoid Valve TURBO Coil DIN43650A with 3 Pin supplier Customized 10W Pulse Solenoid Valve TURBO Coil DIN43650A with 3 Pin supplier Customized 10W Pulse Solenoid Valve TURBO Coil DIN43650A with 3 Pin supplier

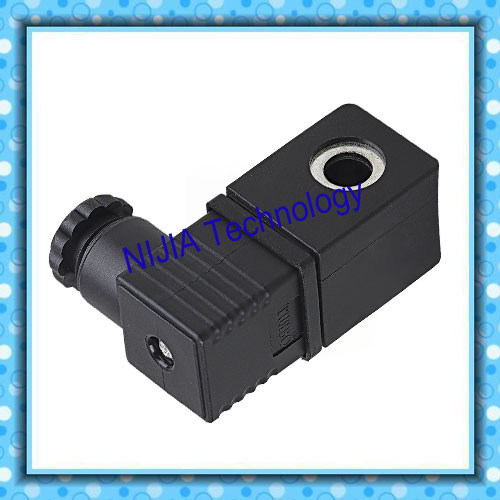

Large Image :  Customized 10W Pulse Solenoid Valve TURBO Coil DIN43650A with 3 Pin

Product Details:

Place of Origin: China
Brand Name: Turbo
Certification: CE/ISO9001
Model Number: TRB coil

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: 1-10 working days after received payment
Payment Terms: T/T,western Union,Paypal,Credit card
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: TRB Coil Insulation Class: F Or H
Normal Voltage: DC24V 6W Connection Type: DIN43650A
Voltage Tolerance: ± 10% Duty Cycle:: 100%
Temperature Range:: –20°C ÷ +80°C Applicability: Turbo Series Solenoid Valves
High Light:

24 volt dc solenoid coil

,

24 volt solenoid coil



TURBO series coil for pulse solenoid valve DIN43650A Pin 3  inner hole diameter 10.2mm  DC24V 10W



The TURBO coil for pulse jet valve is connect with DIN43650A connector , the normal voltage is AC220V DC24V AC110V , other voltage could be customized.



The reaction time of a DC solenoid can be shortened by applying a higher than the nominal voltage for a few milliseconds. This gives a similar effect to the inrush of an AC solenoid. When the armature reaches the end of its stroke, the voltage can be lowered to less than half nominal. This shortens the switch-off time and reduces heat.



The ascendancy is durable and stable , and all solenoids of this system could be sustain high temperature and high pressure , the working life would be used at least 100million cycles.



Thermosetting material will help the coil more stable and safely.





Specifications:





Product NO.  TRB
Product type TURBO series
Normal Voltage DC24V
Normal Power 6W
Insulation Class F , H
Connection Type DIN43650A
Applicability Turbo pulse valve



Notes: please tell me the voltage you need ,if no remark ,
you will receive 24V DC .


The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65.
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version.




Note :



Voltage tolerance:  ± 10%
Temperature range:  –10°C ÷ +80°C
Duty cycle:  100%



Standard voltages:  24 - 110 - 230 VAC
12 - 24 VDC
Other voltages on request





Drawings:

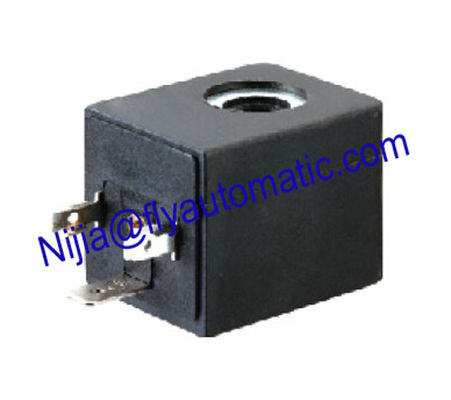

 Customized 10W Pulse Solenoid Valve TURBO Coil DIN43650A with 3 Pin





Application :



The suggested interface dimensions of the valve body are shown on the right side .
Any change to the prescribed dimensions can effect the performances of the solenoid operator .

The Turbo coil is fastened to the plunger guide tube by means of a knurled nut for ease of change over without interrupting the pneumatic circuit .

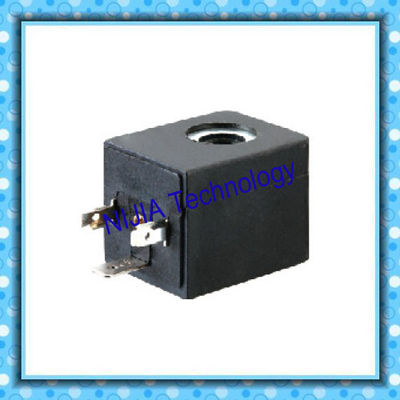

Customized 10W Pulse Solenoid Valve TURBO Coil DIN43650A with 3 Pin
