Payment & Shipping Terms:
|Port Size:||1/8" 1/4" 3/8" 1/2"||Body Mateial:||Aluminium Alloy|
|Working Pressure:||0.15-2 MPa||Ambient Temperature:||-40-100 ℃|
combination Control Valve,
automatic control valves

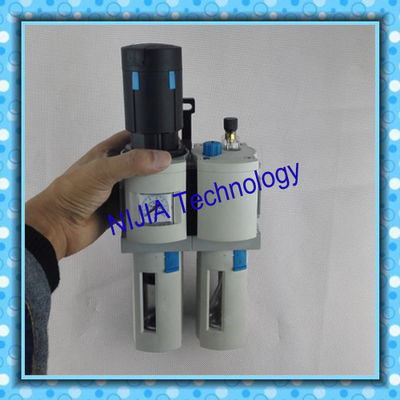

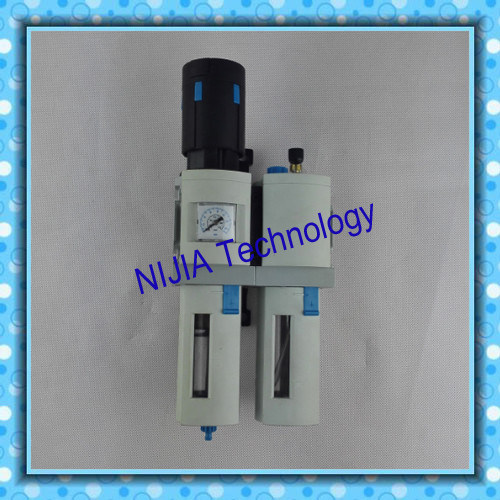

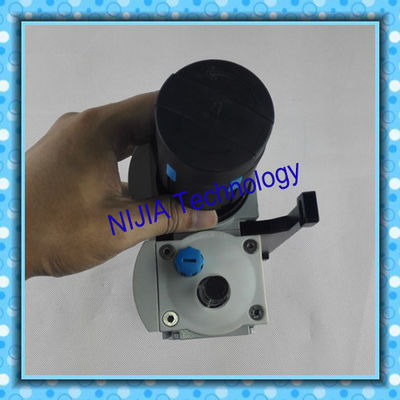

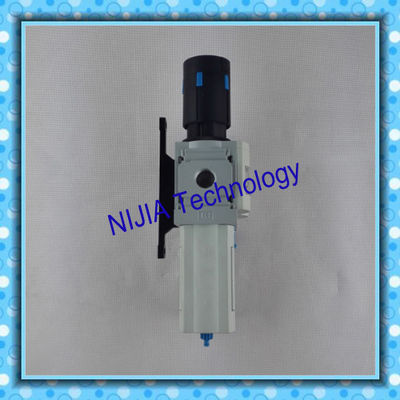

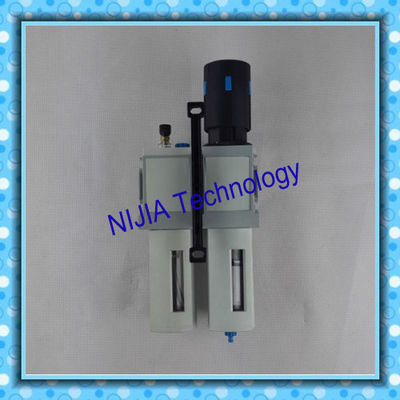

1. Filter, regulator and lubricator function in a single unit.
2. High flow rate and highly efficient removal of contaminants.
3. Good regulating characteristics with minimal pressure hysteresis.
4. Setting values are secured by locking the rotary knob.
5. Lockable rotary knob
6. Two pressure regulation ranges: 0.3 … 7 bar and 0.5 … 12 bar.
7. With manual or integrated, fully automatic condensate drain.
8. Choice of filter cartridges: 5 μm or 40 μm.
9. New filter cartridges 16, Festo special oil 16
General technical data
|Pneumatic connection 1, 2||G 1/8||-|
|G 1/4||G 1/4|
|Design||Filter regulator with pressure gauge|
|Proportional standard mist lubricator|
|Regulating function||Output pressure constant, with primary pressure compensation, with return flow function, with secondary venting|
|Type of mounting||Via accessories|
|Assembly position||Vertical ±5°|
|Grade of filtration [μm]||5|
|Air purity class at the output||Compressed air in accordance with ISO 85731:2010 [6:4:–] (grade of filtration 5 μm)|
|Compressed air in accordance with ISO 85731:2010 [7:4:–] (grade of filtration 40 μm)|
|Bowl guard||Plastic bowl guard||Plastic bowl guard|
|-||Integrated as metal bowl|
|Condensate drains||Manual rotary|
|Actuator lock||Rotary knob with detent, lockable via accessories|
|Pressure regulation range [bar]||0.3 … 7|
|0.5 … 12|
|Pressure indicator||With pressure gauge|
|① Body||Die-cast aluminium|
|② Regulating knob||PA/POM|
|③ Plastic bowl guard||PC|
|④ Metal bowl||Wrought aluminium alloy|
1. The company for the products are brand new original products, no second-hand and refurbished
products, or leave a compensable ten and return the full amount.
2. The buyer due to our purchase of model error is not responsible for returns.
3. Another of the company's sales of products enjoy one year from the date of shipment quality
assurance, according to the original quality standards, during warranty with product problems' need
confirmation testing by the manufacturer, the supplier to be solved ,the demand side due to storage,
use, poor maintenance caused by lower-quality product, and not raise objections.
The products will be sent out together by Fedex, DHL, TNT, or SF Express and so on. Of cause, if you
have a special requirements, we will do as you told.
The product include the diaphragm big/small and spring. If you have received the product has a
problem, please let me know, I will help you to solve the question first time.
